 Product information > Invergter SEAM automatic welding device |
 |

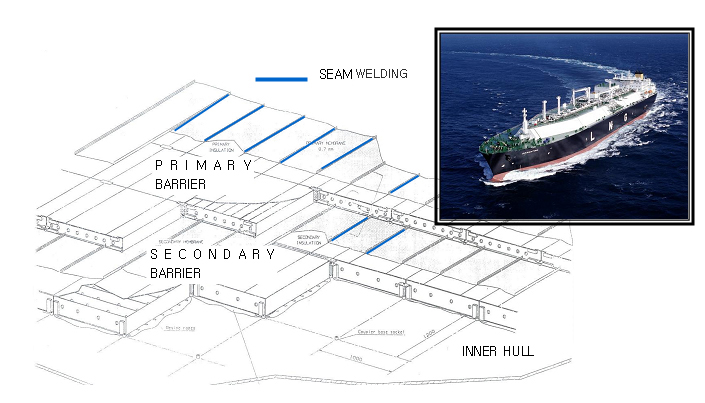

| Seam welding device on STRAKE for MEMBRANE 96-2 LNG transport tank construction. |
 |
 |
- High welding quality by using inverter control rather than existing SCR control
- By using welding cycle time adjustment, welding speed is increased by 20%
- 20% lighter weight for better portability
- High cooling function using cooling chiller |
 |
| NO |
Category |
Specifications |
Remarks |
| 1 |
Applied welding technique |
RESISTANCE SEAM welding |
 |
| 2 |
Applied welding form |
Overlapping welding, 0.7+0.5+0.7 INVAR STEEL |
| 3 |
Device movement method |
DRIVE WHEEL, synchronized with worm gear |
| 4 |
Welding speed |
App. 2,000 MM/MIN |
| 5 |
Input power |
AC 440V, 3 phase, 25A |
| 6 |
TRANSFORMER |
DC INVERTER TYPE, 440V, 120 KVA |
| 7 |
WELD TIMER |
DC INVERTER TYPE, 3-20KA, 1 K |
| 8 |
Composition |
MOBILE CONTROL BOX + remote control
+ SEAM WELDING CARRIAGE
+ cable & hose
|
|
 |

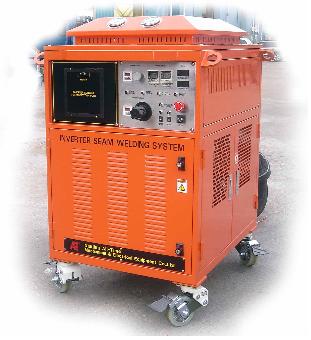

| MOBILE CONTROL BOX |

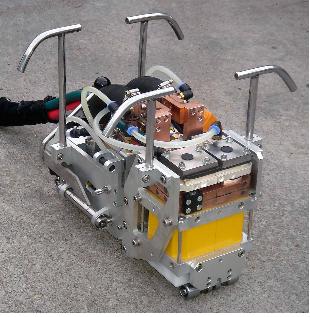

SEAM WELDING CARRIAGE |
 |
 |
|
 |
| Classification |
Category |
Specifications |
Remarks |
| CARRIAGE |
Motor |
AIR MOTOR, 2HM5550 |
|
| Movement method |
Worm gear + belt, air motor |
|
| Movement speed |
Max. 2,500 MM/MIN |
|
| TRANSFORMER |
DC INVERTER, 120KVA,Weight-16KG
Continuous usage current - 6.2 KA
|
|
| Weight |
App. 43 KG |
|
MOBILE CONTROL
CARRIAGE |
Input voltage |
AC 440V, 3PHASE, 25A |
|
| WELD TIMER |
DC INVERTER, 1HZ, 3-20KA |
|
| Cooling device |
RADIATOR FAN cooling + CHILLER installed |
Dual cooling |
| Cooling water tank capacity |
70 LITERS |
|
| WATER PUMP |
GRUNDFOS CH2-50, AC220V, Ø3 |
|
| Adjustment device |
CLAMP AIR pressure, MOTOR AIR pressure,
CHILLER operation temperature setting
|
|
| ERROR output |
CLAMP AIR pressure LOW, MOTOR AIR pressure LOW,
WATER FLOW LOW, TIMER ERROR
|
Buzzer alarm |
| Display |
Cooling water flow rate, input voltage, input current
Operation lamp (power, chiller, pump)
Input air pressure, cooling pump pressure |
|
| Others |
Emergency stop switch |
|
| Weight |
App. 200 KG |
|
| CABLE & HOSES |
50M |
|
|
|
